Building The Trumpeter 1/32 SBD-5

Posted by Paul On May - 18 - 2009

dsc_0881















This model has been an experience. I built it while I was passing a kidney stone. I had to do something with my time. It took me 14 days to get rid of the pesky little kidney stone and I spent some long nights up while I was dealing with the pain and couldn’t sleep. Thank goodness for my sweet wife and all my kids (thanks for all of the phone calls!!) and Percocet. My advice – drink a lot of water and keep your urine clear!! Here are some pics (of the model – not my…):

I added some leftover Eduard placards from the set for my 1/32 Academy F/A-18 Hornet. They look good and it’s not like you can read what they say.

A little background: I won this mode at the Model Expo in 2007 at their raffle – great raffle – thanks guys! This model has been sitting in my closet stash since then. I started it toward the end of October and the on Nov. 2nd my kidney stone adventure started. I would work on the SBD during times the pain and painkillers would allow. I filled the instrument holes with Future to replicate lenses and used Eduard seatbelts instead of the kit supplied ones. One more pic – here I have taped the wings on to get an idea of how good the wing joint will be – I looks quite small and managable…

2-7-09

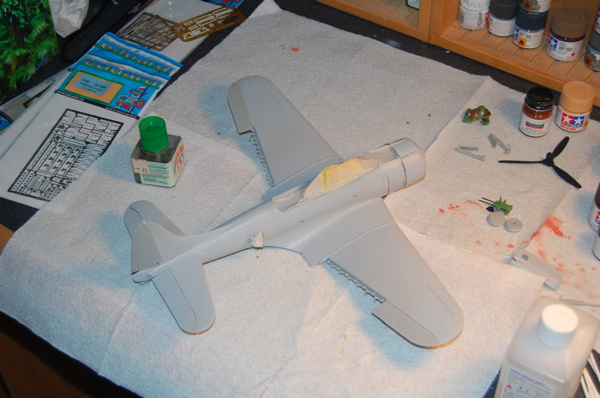

Ok – I have finally been able to do some more work on the SBD – here are the pics – notice that I have primed the model with Tamiya fine grey primer:

dsc_0861

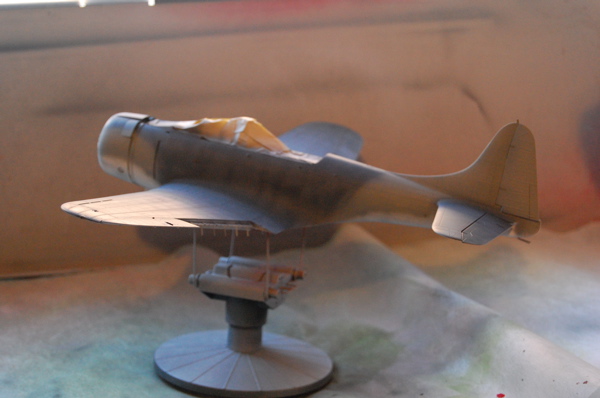

After paint has been applied. The bottom is Hobby Color flat white and the top is Model Master acryl dark ghost gray and Hobby Color navy blue.

dsc_0866

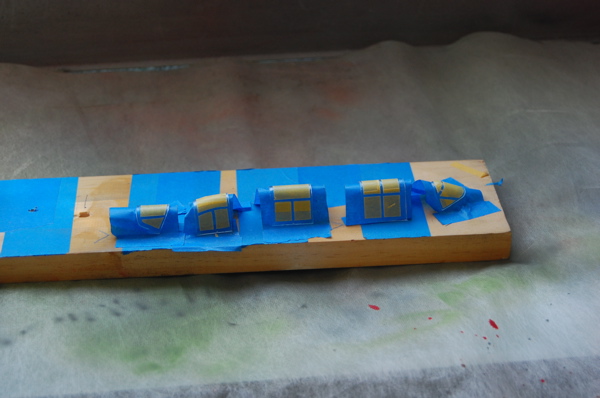

Here I have masked off the canopies using Tamiya tape after putting through a bath of Future:

dsc_0868

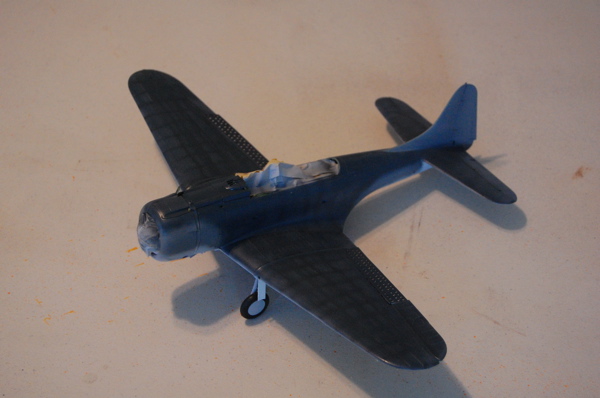

This pictures were taken after I shot the plane with a thin coat of Future before the decals are applied.

dsc_0869















2/12/09

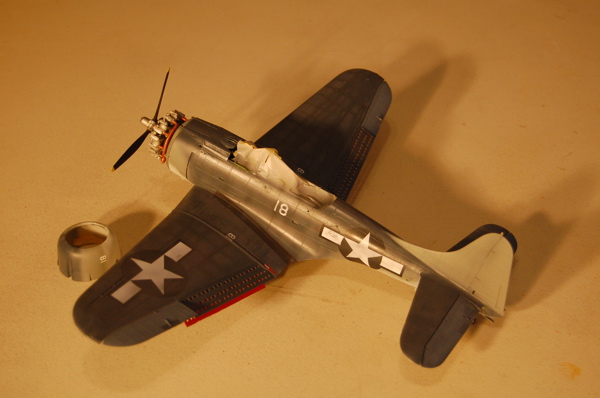

Here are some pictures after I have applied the decals. The kit decals for the stars and bars have the wrong color for the blue field. I substituted a set produced by 21st Century Models that I bought from Roy Sutherland at one of our club meetings. These decals are for their F4U Corsair but are the right size and color – much better than the kit decals. I also used the stencil decal set by Yellow Wings. This is much more complete and better quality than the kit stencil set.

dsc_0877















Rather than use decals for the walkways I masked off the walkway areas on the wings using a decal as a template. Then the area was sprayed with Future Floor Wax and while it was wet I sprinkled on baby powder. After the area was dry I brushed off the excess then spray painted the area with Tamiya flat black.

The walkways and stars and bars looked just too pristine with the faded paintjob so I oversprayed these areas with a very thin coat of the top blue color to blend the areas in. This resulted in a more appropriate weathered appearance.

2-18-09

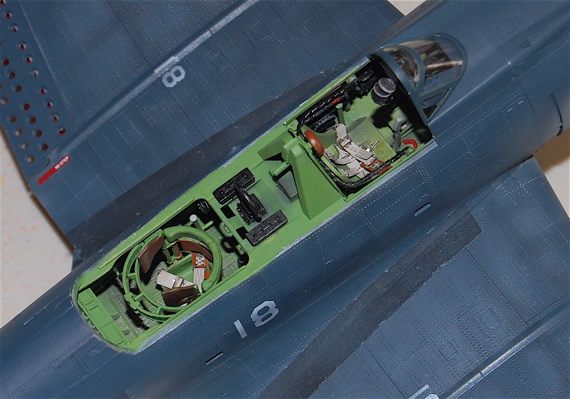

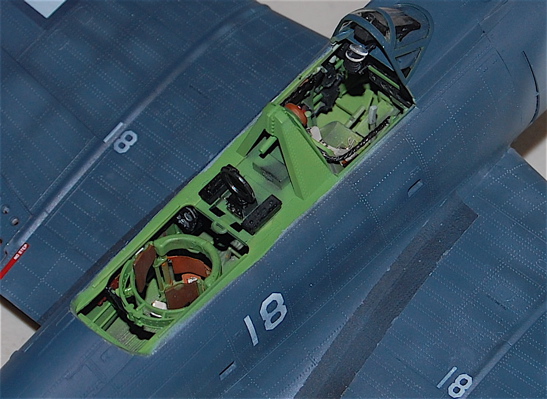

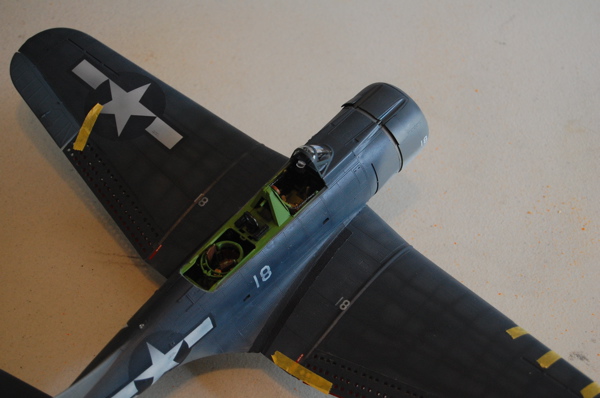

I’ve done a little more now – the front windscreen is on along with the armor plate and heads up display. There are also some pics showing off the interior and the really nice Eduard seat belts….

dsc_0880

dsc_0883

 dsc_3922
