1/70 Soleil Royal

Posted by Paul On April - 13 - 2020

4/13/2020  The COVID 19 pandemic is on and my wife and I are sequestered at home for the last 33 days now.  Tough times, but we are doing well.

Go to PAGE 2

Go to PAGE 3

A few days ago I received this very nice wood ship model kit from China of the Soleil Royal in 1/70 scale.  It's advertised at 1/90 but that's incorrect based on the length of the model (41.4 in) vs the actual ship length (200 ft). This will take in the neighborhood of 2 years to complete.  Here is a pic of the completed model:

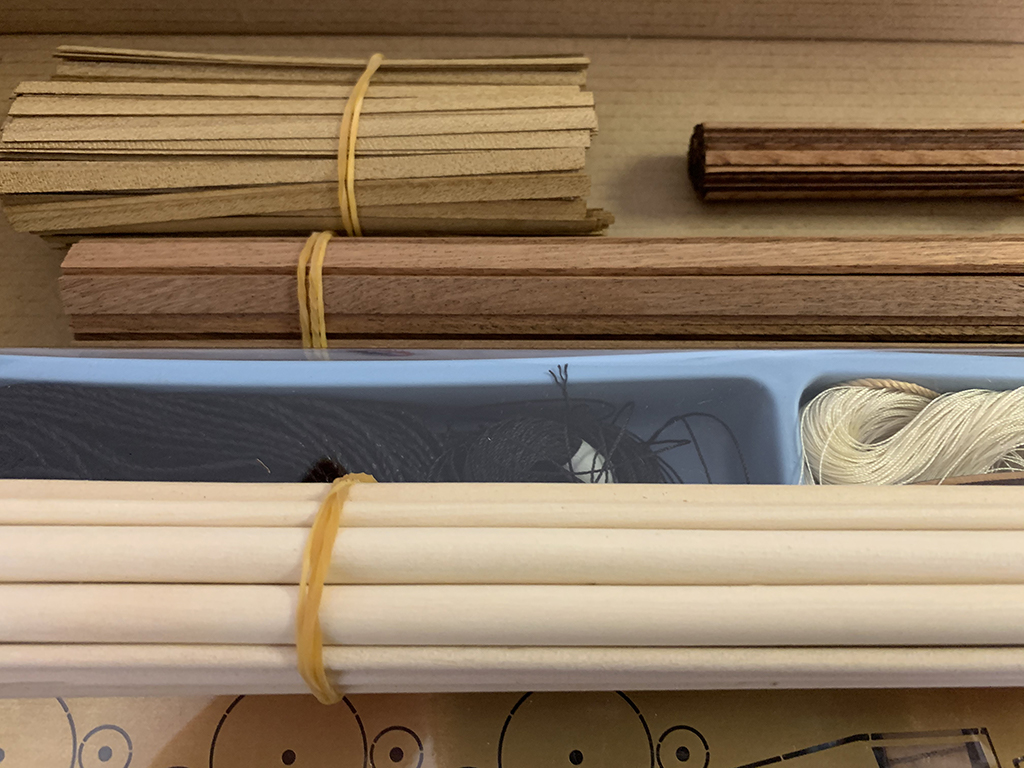

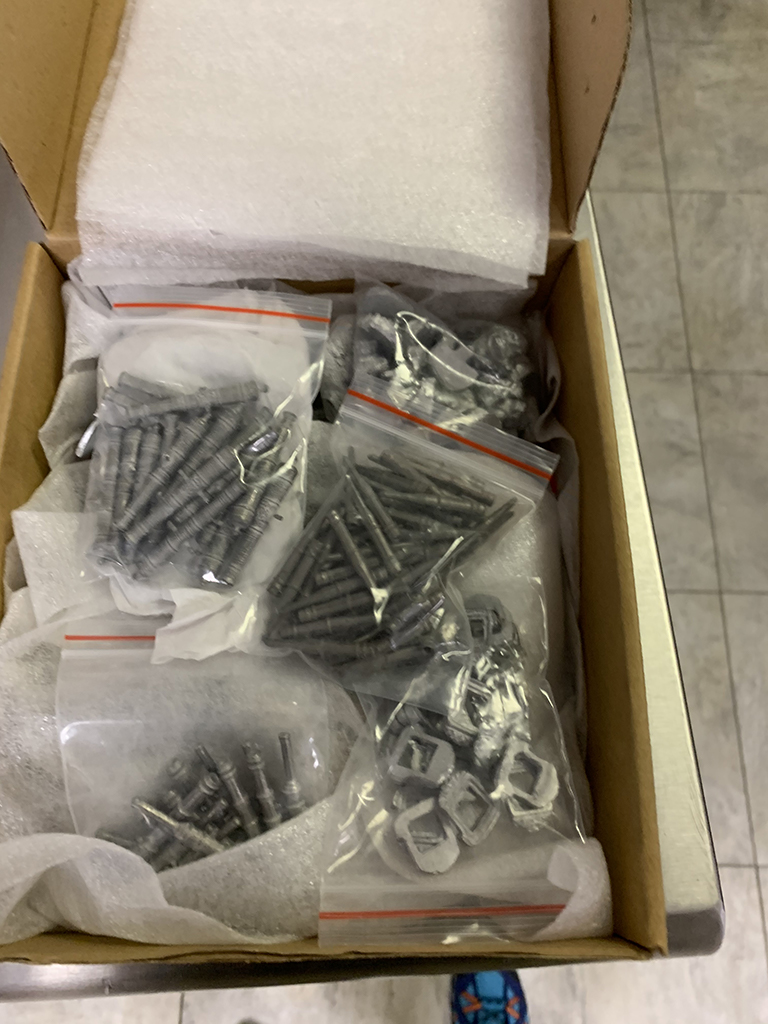

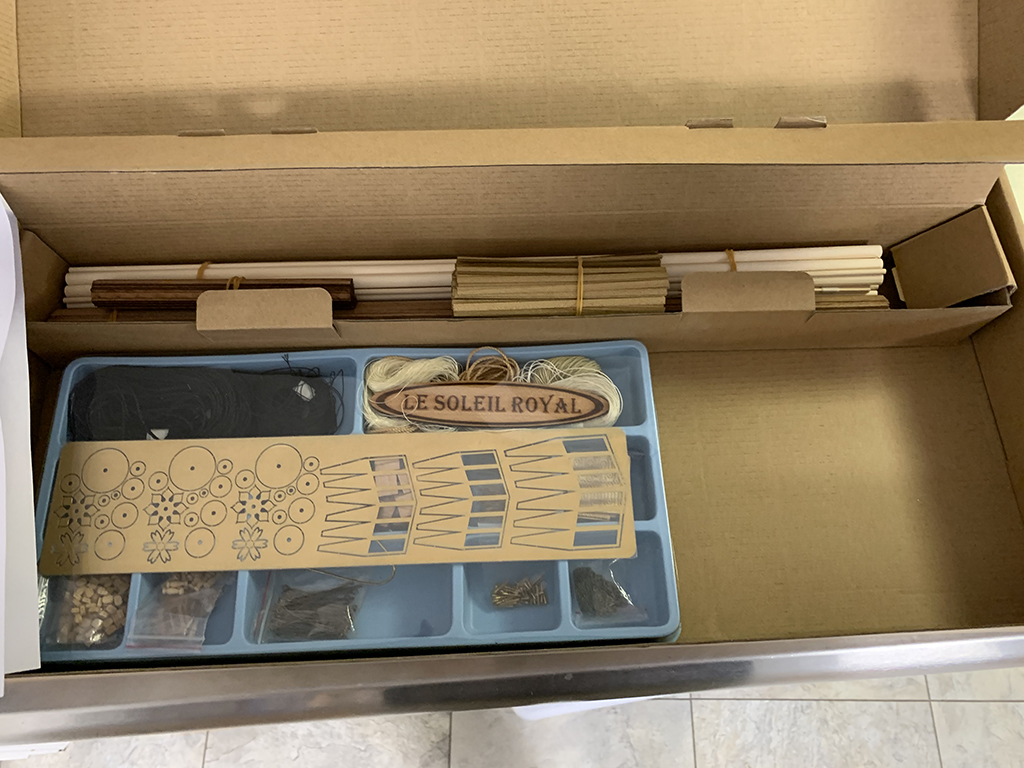

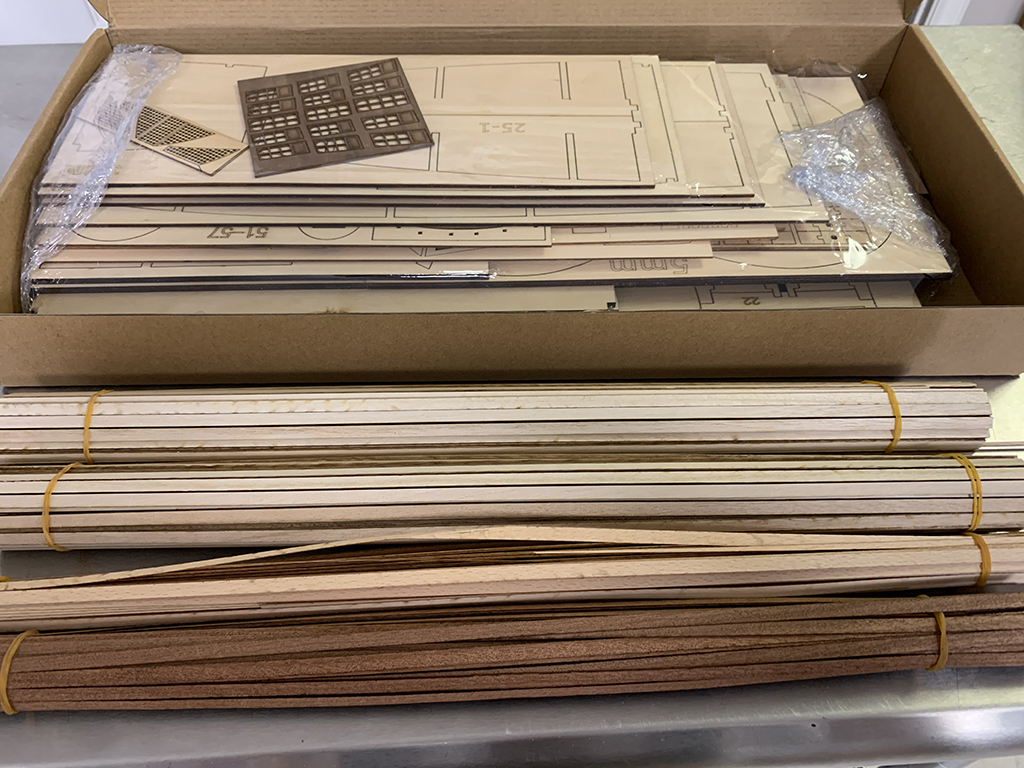

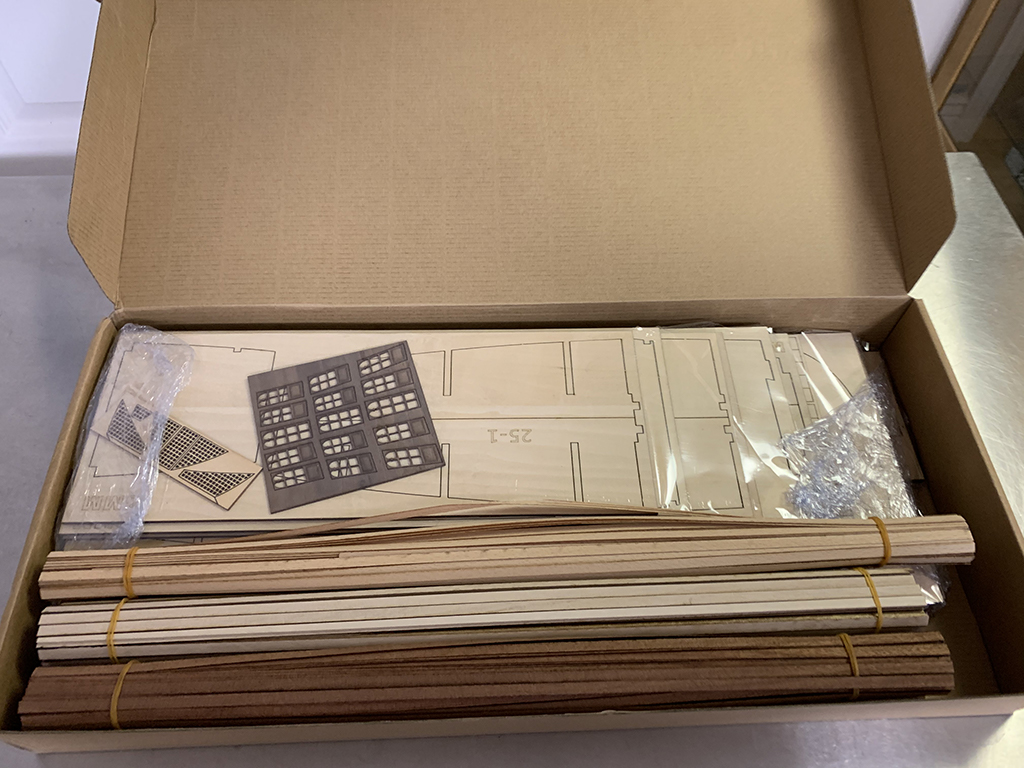

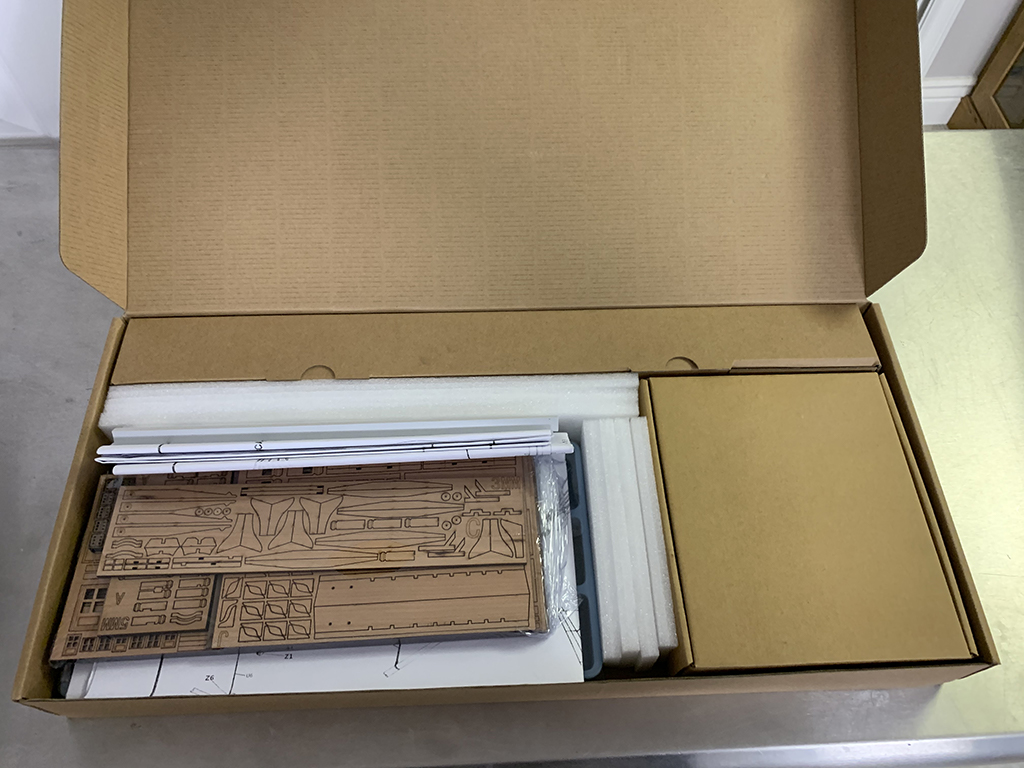

Here are some pics of the box contents:

9/20/2020  Just an insert here.  The model is marked as 1/90 scale, but by my calculations it is closer to about 1/70 scale.

SOLEIL ROYAL SCALE

  FULL SCALE MODEL SCALE MODEL SCALE
  FEET IN FEET
TOP GUN DECK   28 2.33 74.68
UPPER GUN DECK LENGTH   26 2.17
LOWER GUN DECK LENGTH   25.5 2.13
GUN DECK 174.25
LENGTH OF KEEL 151.25 25.75 2.15 70.49
BREADTH 47.00 8 0.67 70.50

RATIOS
TOP GUN DECK/BREADTH     3.5
UPPER GUN DECK/BREADTH 3.71   3.25
LOWER GUN DECK/BREADTH     3.1875
GUN DECK LENGTH SHOULD BE 29.66 2.47 70.50

LENGTH OF KEEL/BREADTH 3.22   3.22
KEEL LENGTH SHOULD BE   25.74 2.15 70.50

GUN DECK/KEEL 1.15
GUN DECK LENGTH SHOULD BE 29.67 2.47


MODEL SCALE= 1/71

LENGTH


    CANNON LENGTH LENGTH
SHOT WEIGHT CALIBER MODEL SCALE, MM FULL SCALE, FT
4 LB
6 LB     6.00
12 LB
18 LB   43.00 20.31
26 LB

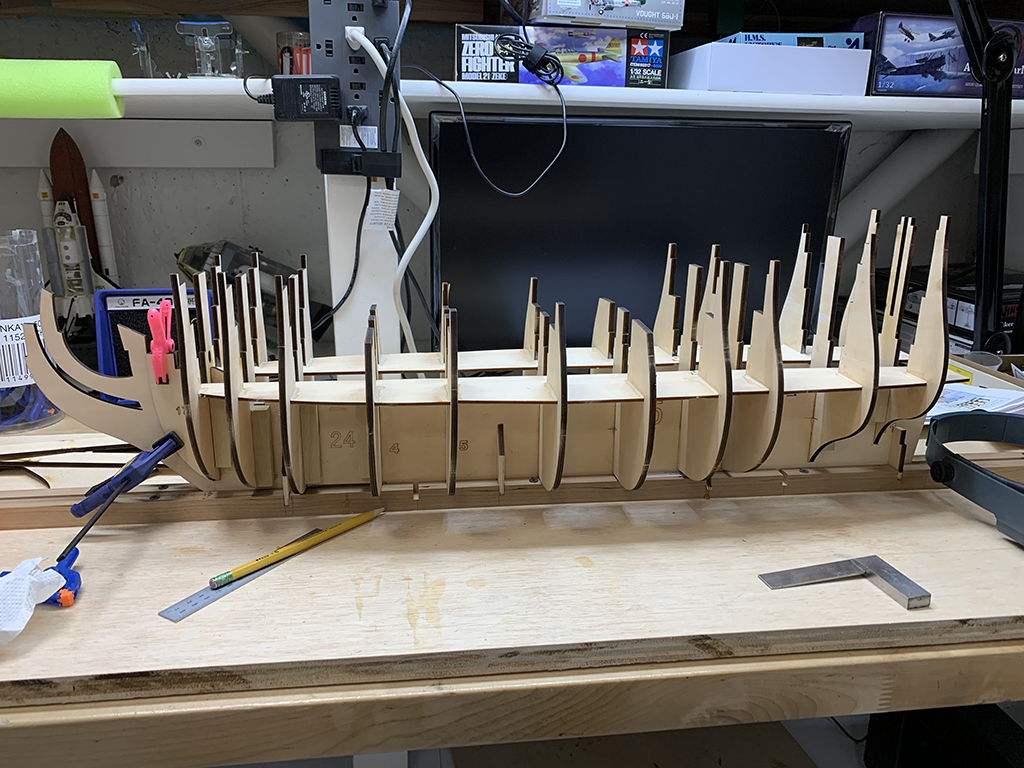

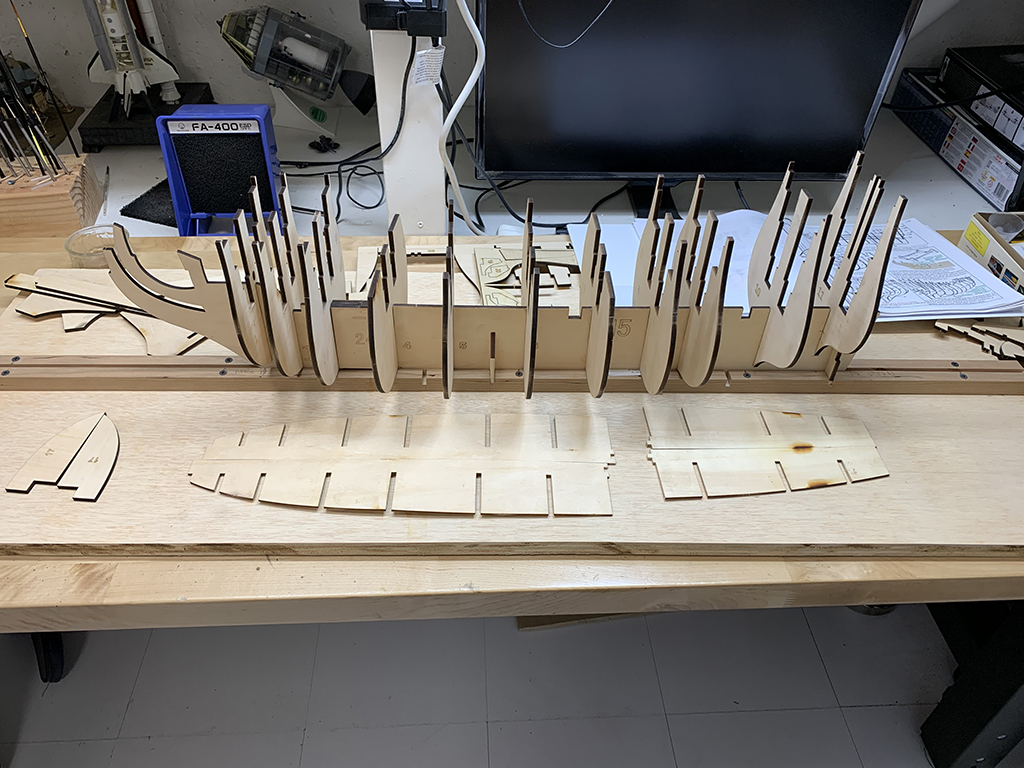

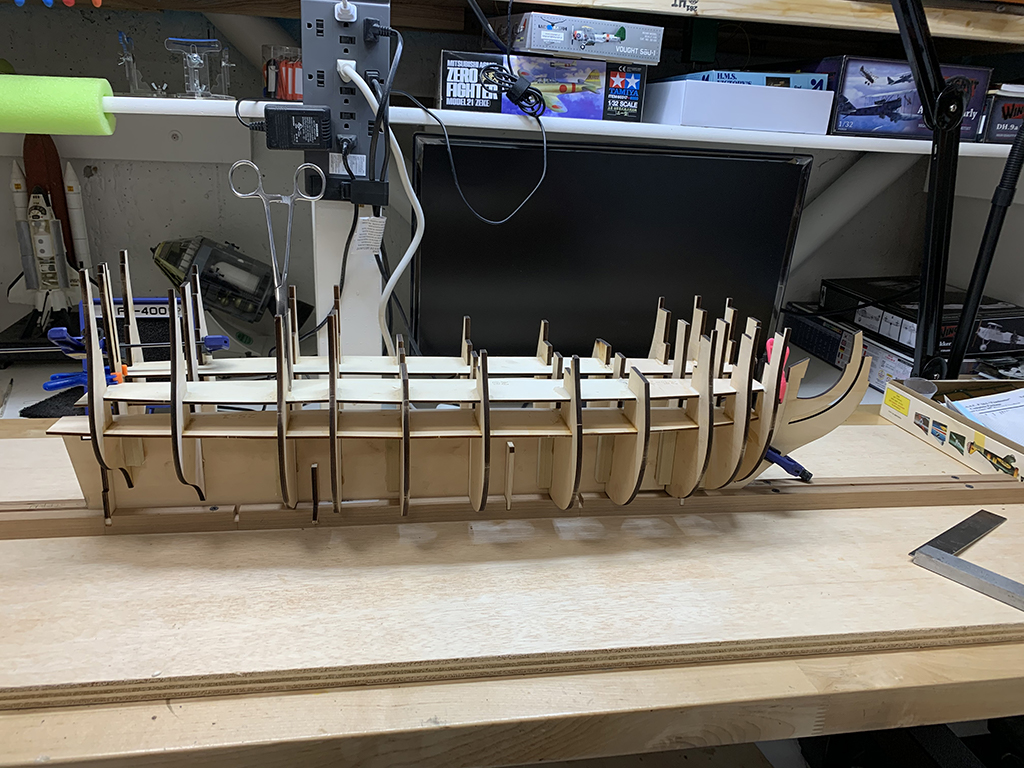

Here is where the build is presently (4/13/2020):

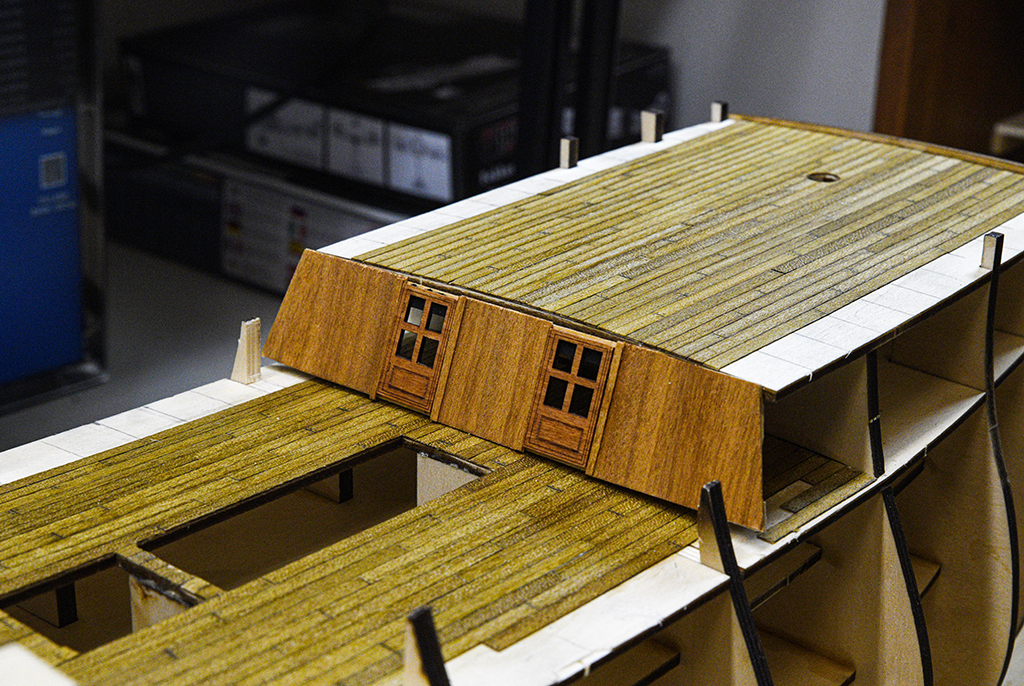

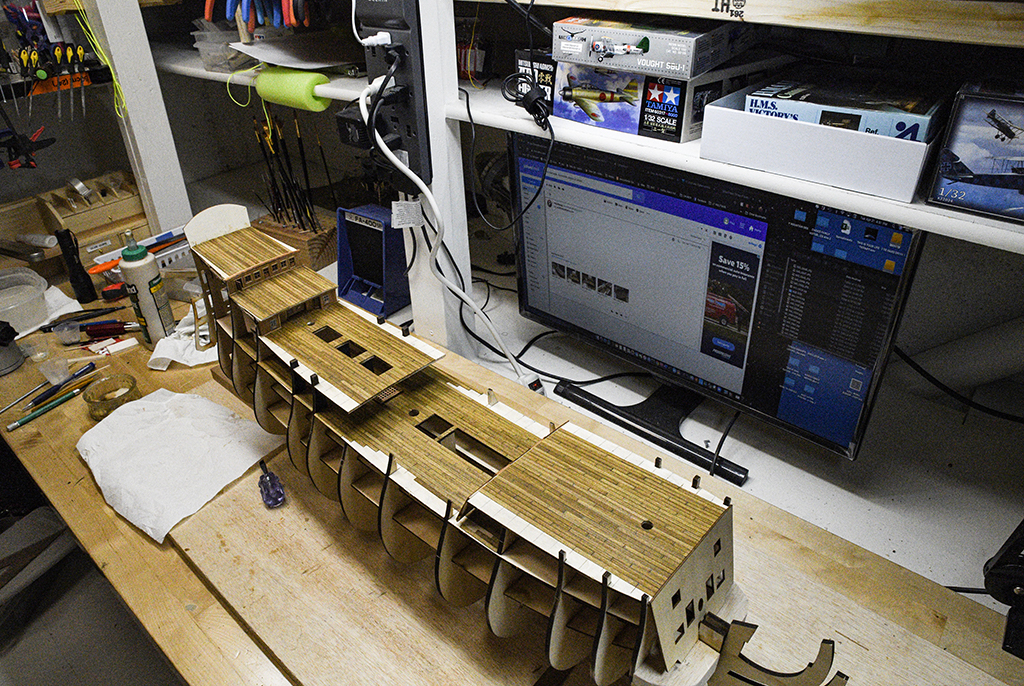

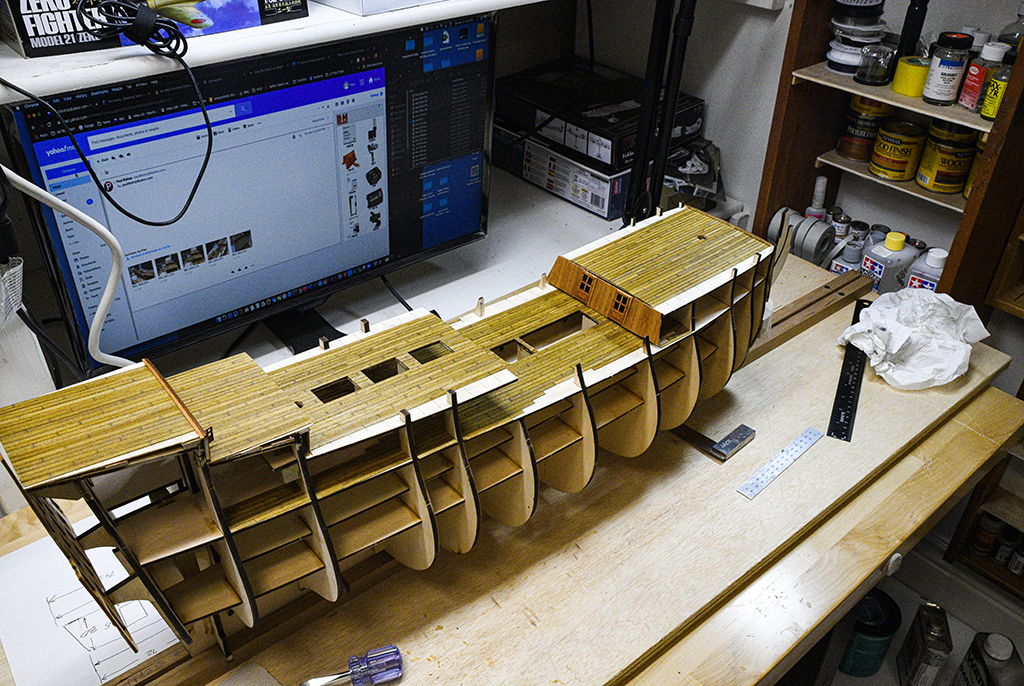

4/15/2020 Adding the teak decking.

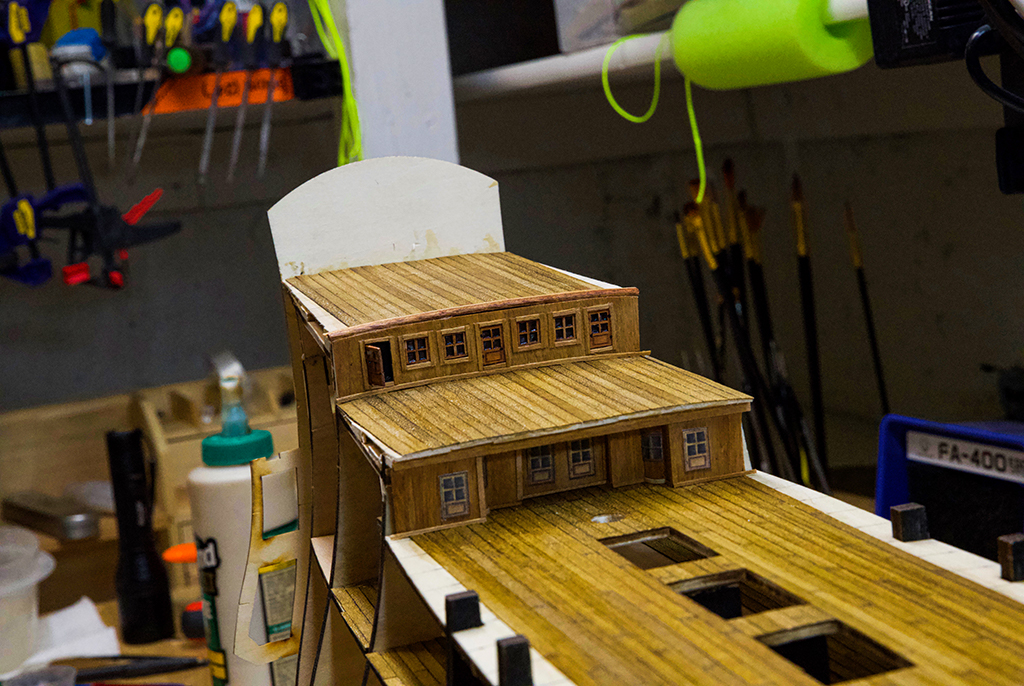

4/17/2020A few more photos from today.  I'm modifying the two poop decks to look more like the museum model. The two aft poop decks look just too inclined to me (rather too steep for the crew to stand on and function), so I've decided to make them more parallel to the main deck. The museum model also shows these two decks roughly parallel to the main deck too.



4/21/2020

I have been working on this and have made some progress….

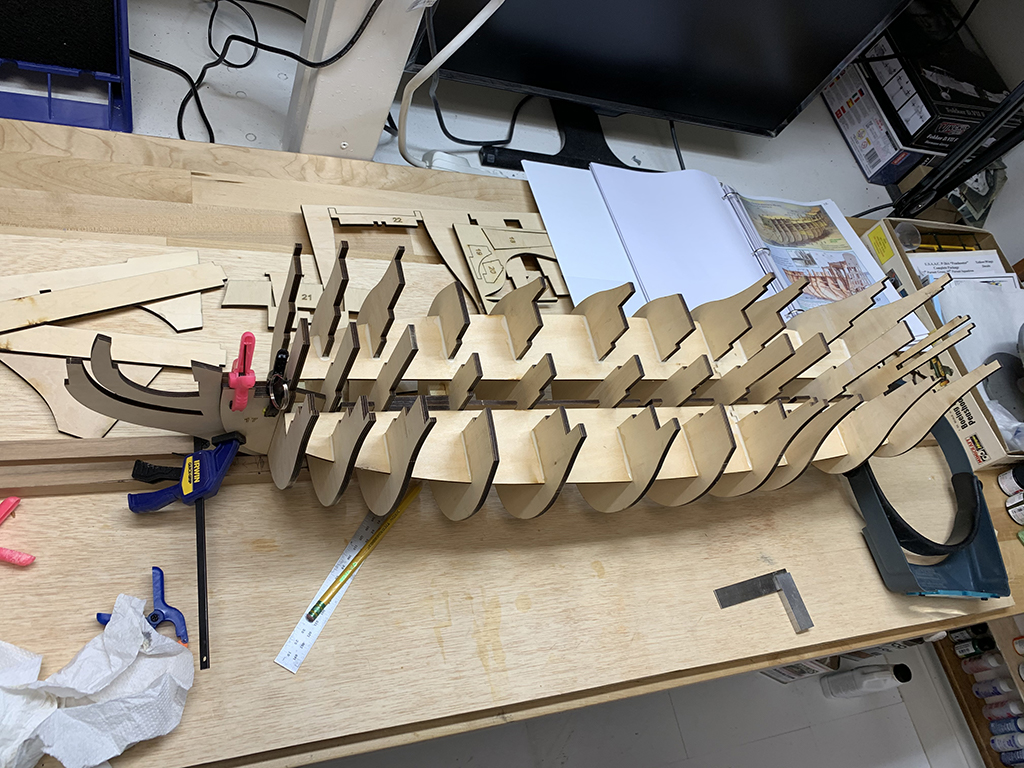

4/3/2020 Current state of the build…

5/13/2020

More pics…

5/24/2020

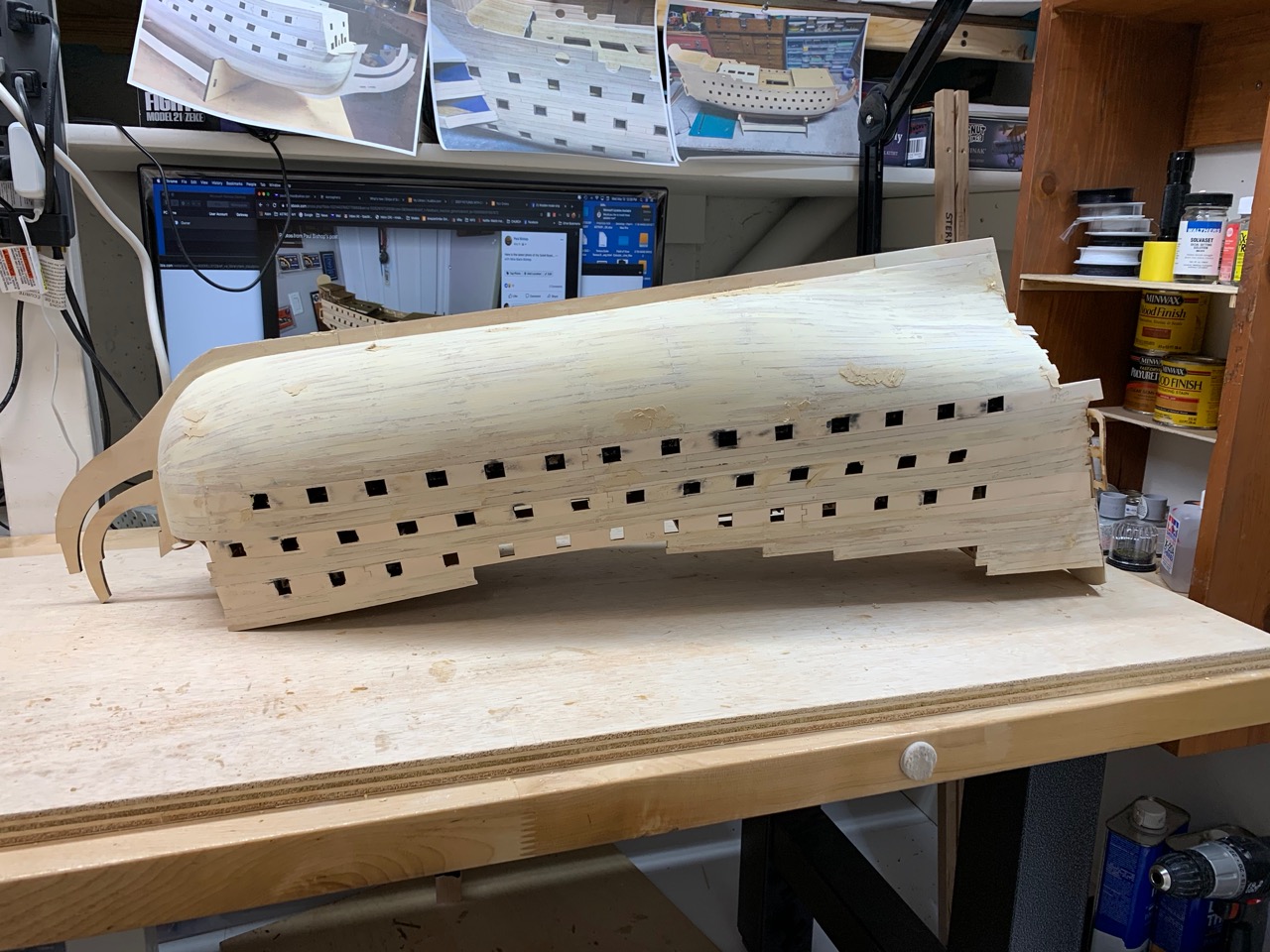

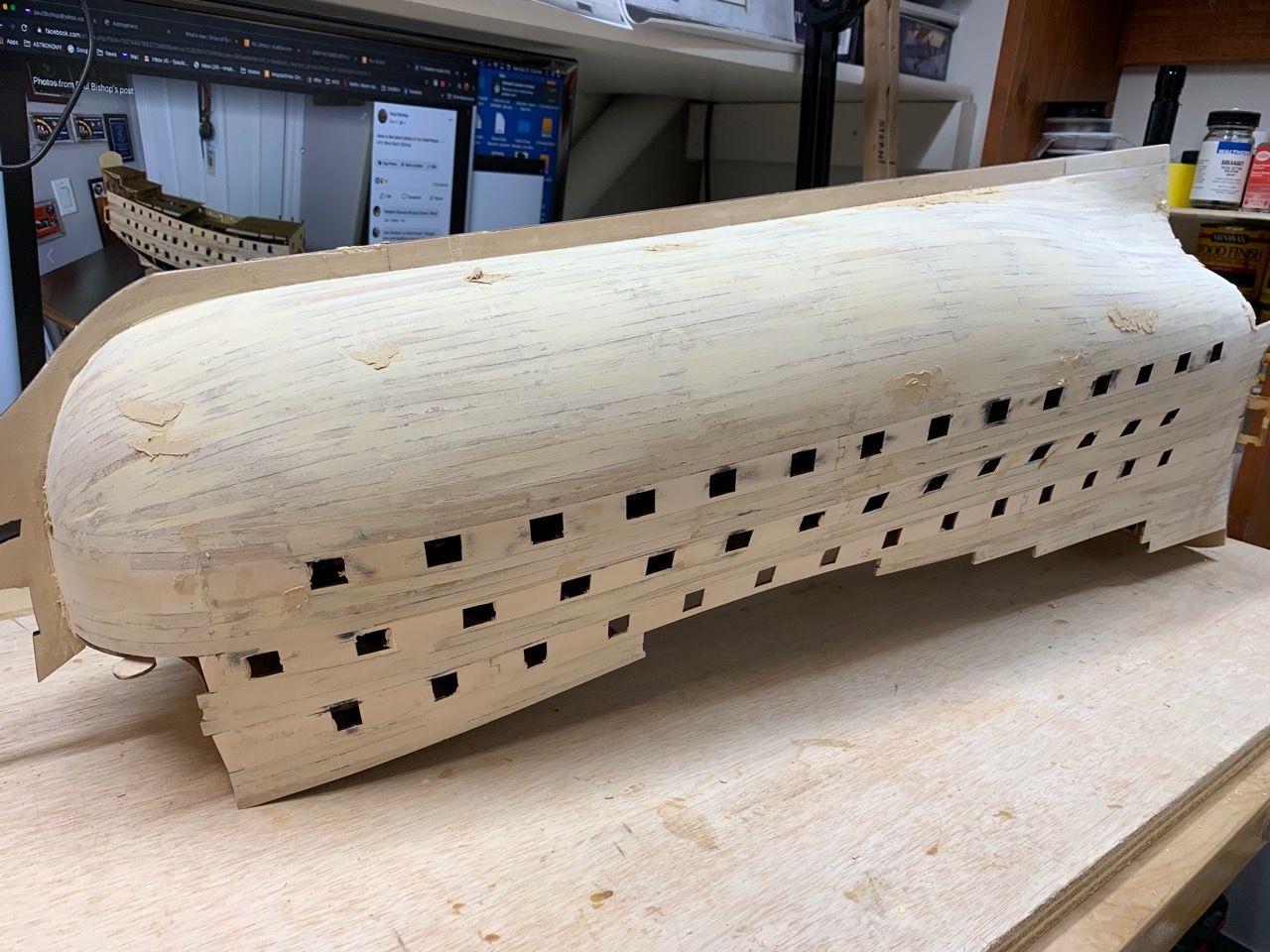

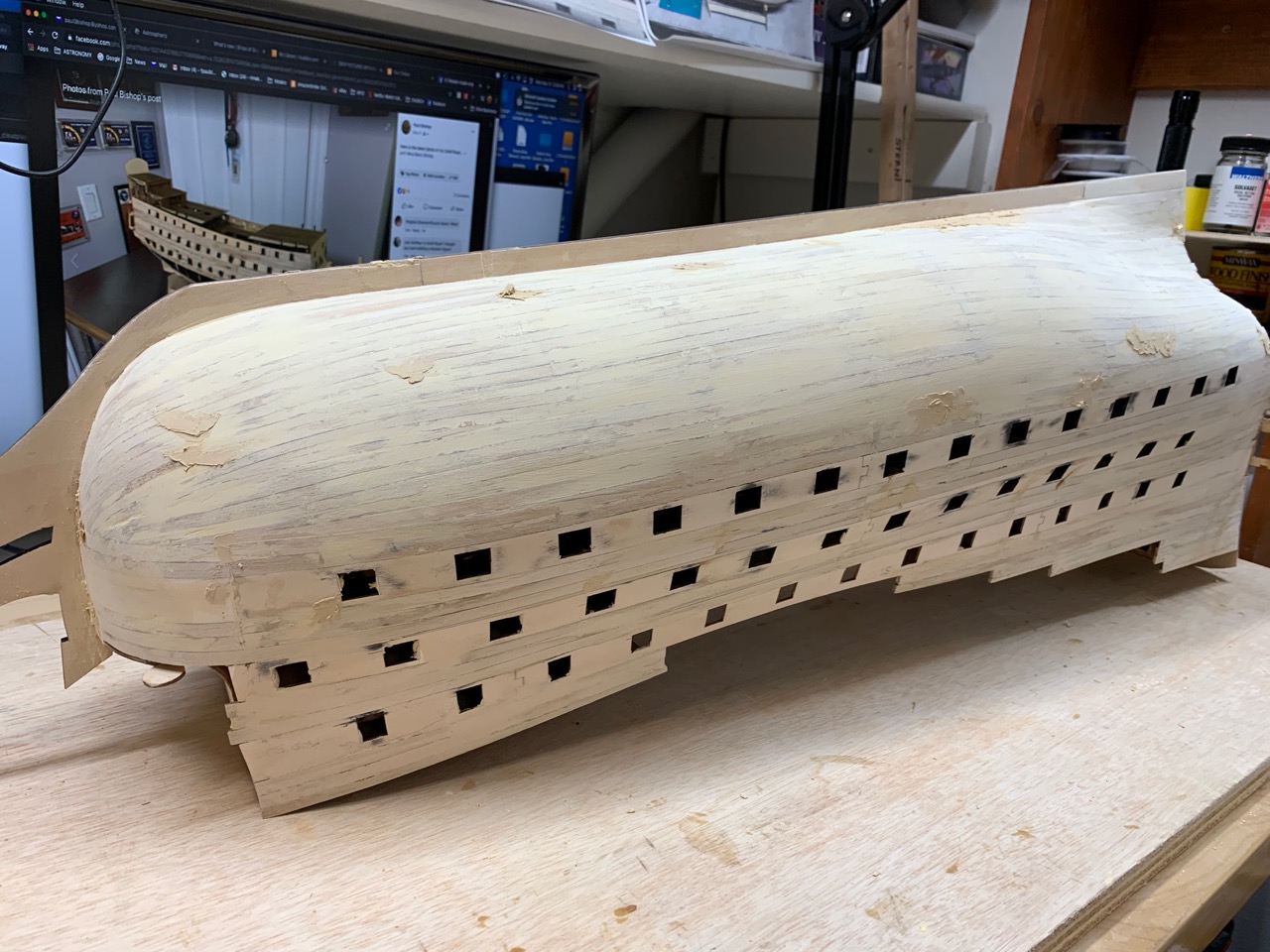

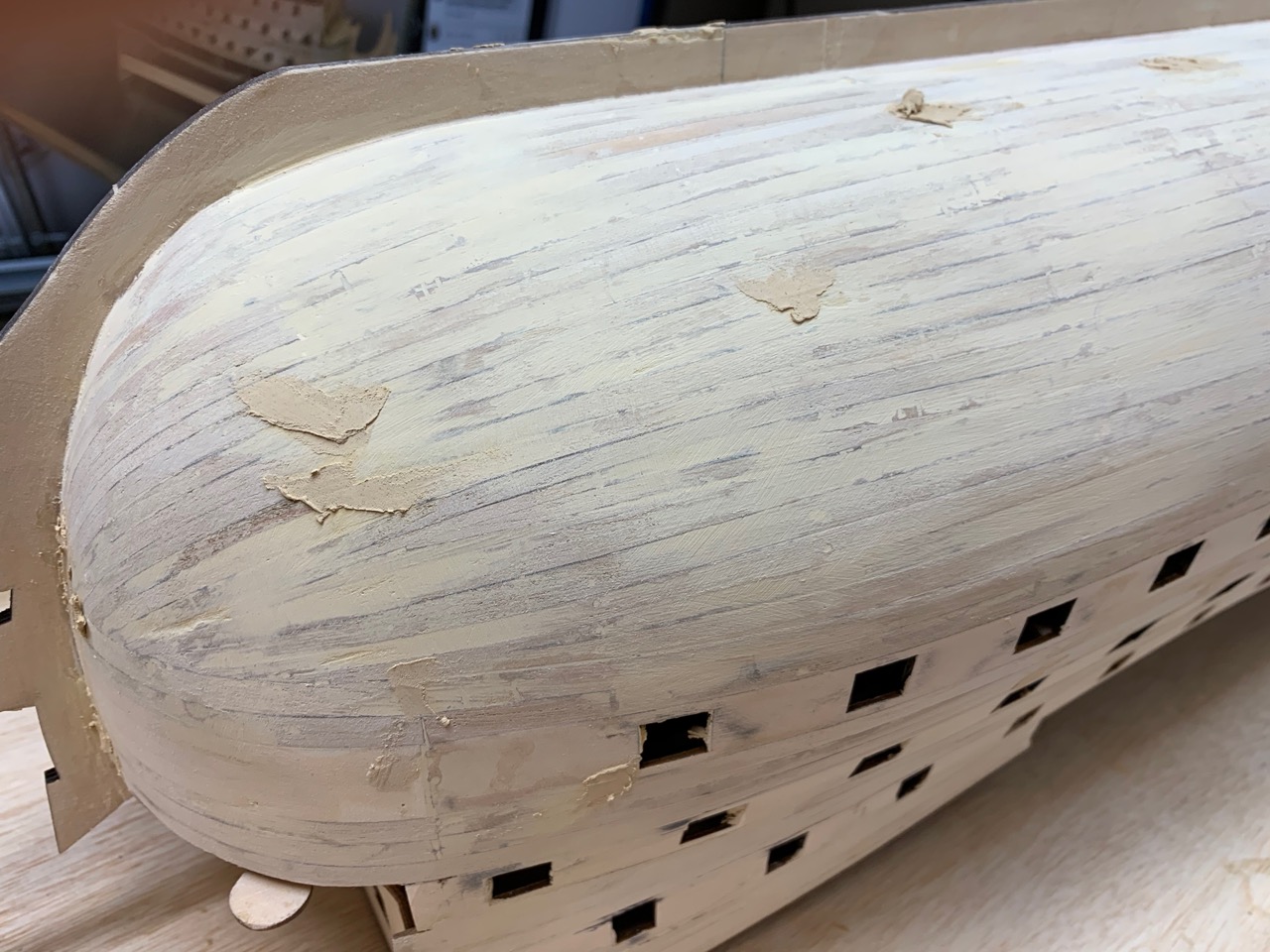

I've now added the gun port frames, done some finish work on the stern, and planked the lower hull.  I next will do a finish sanding on the lower hull, paint the gunport frames red then proceed to plank the upper hull.

5/31/2020  I made a little more progress, the lower hull was finished with Gilders Asphaltum.  The wales have bolts sumulated with beechwood toothpicks.



6/14/2020 Some more photos to update…

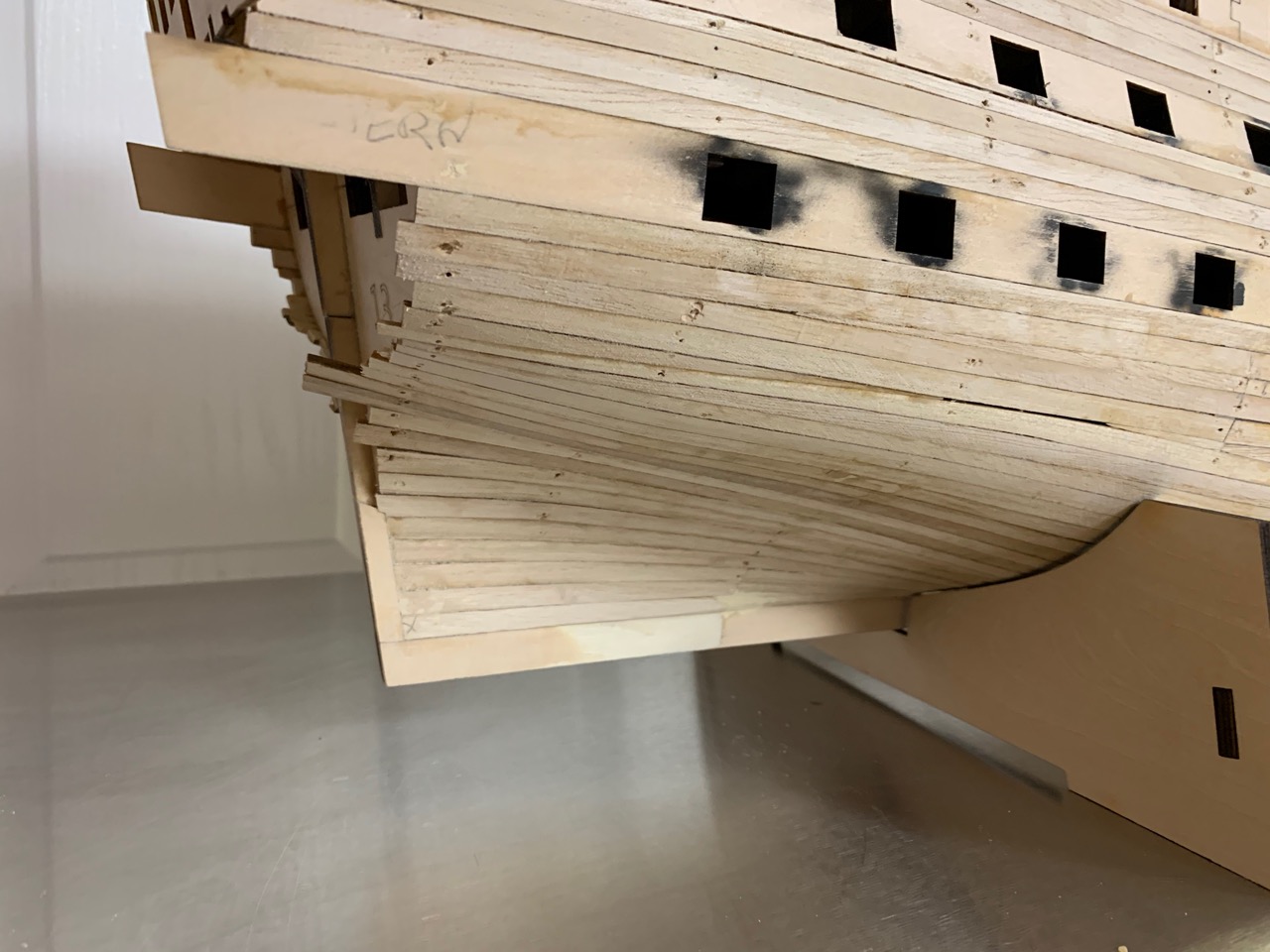

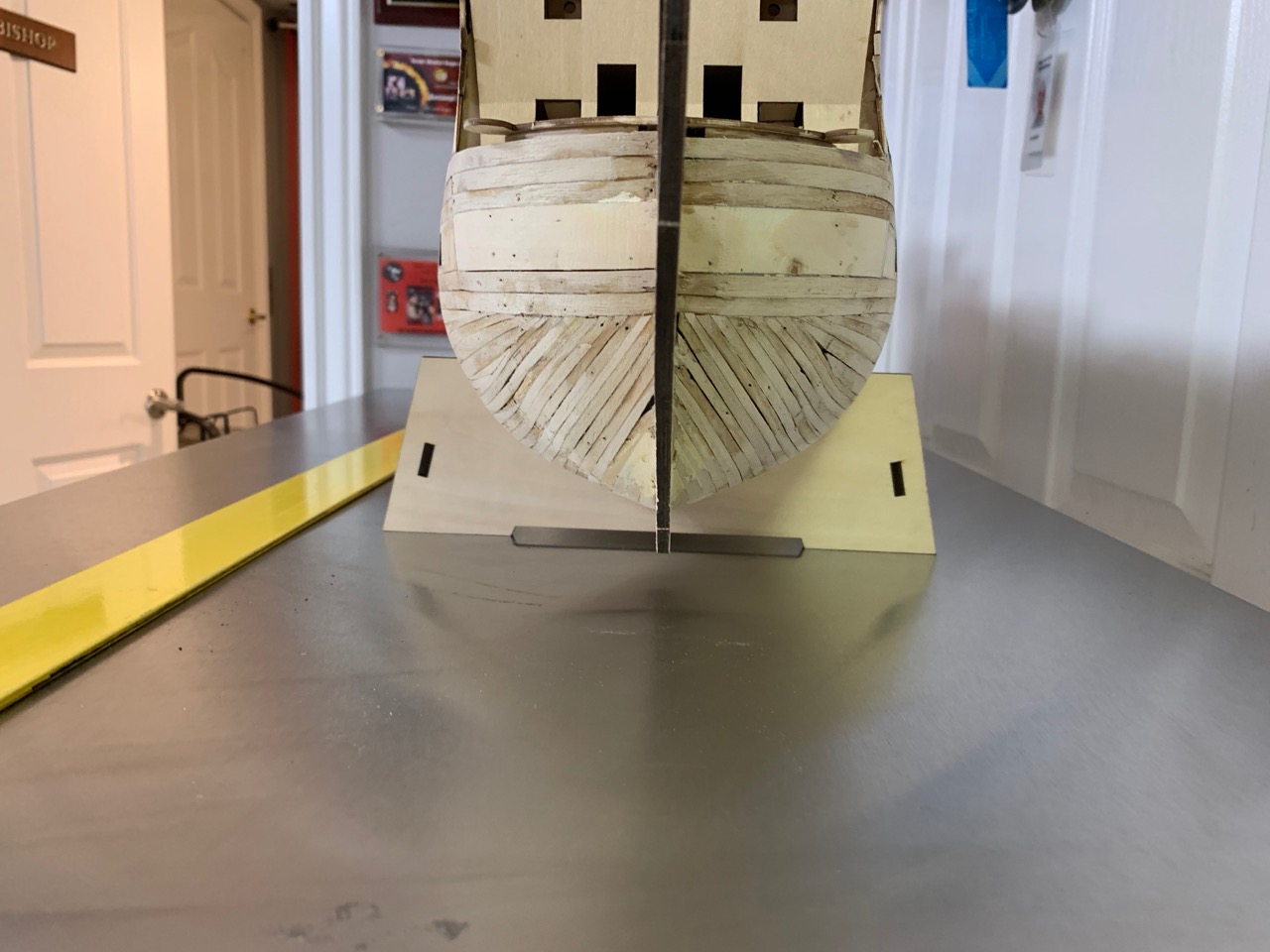

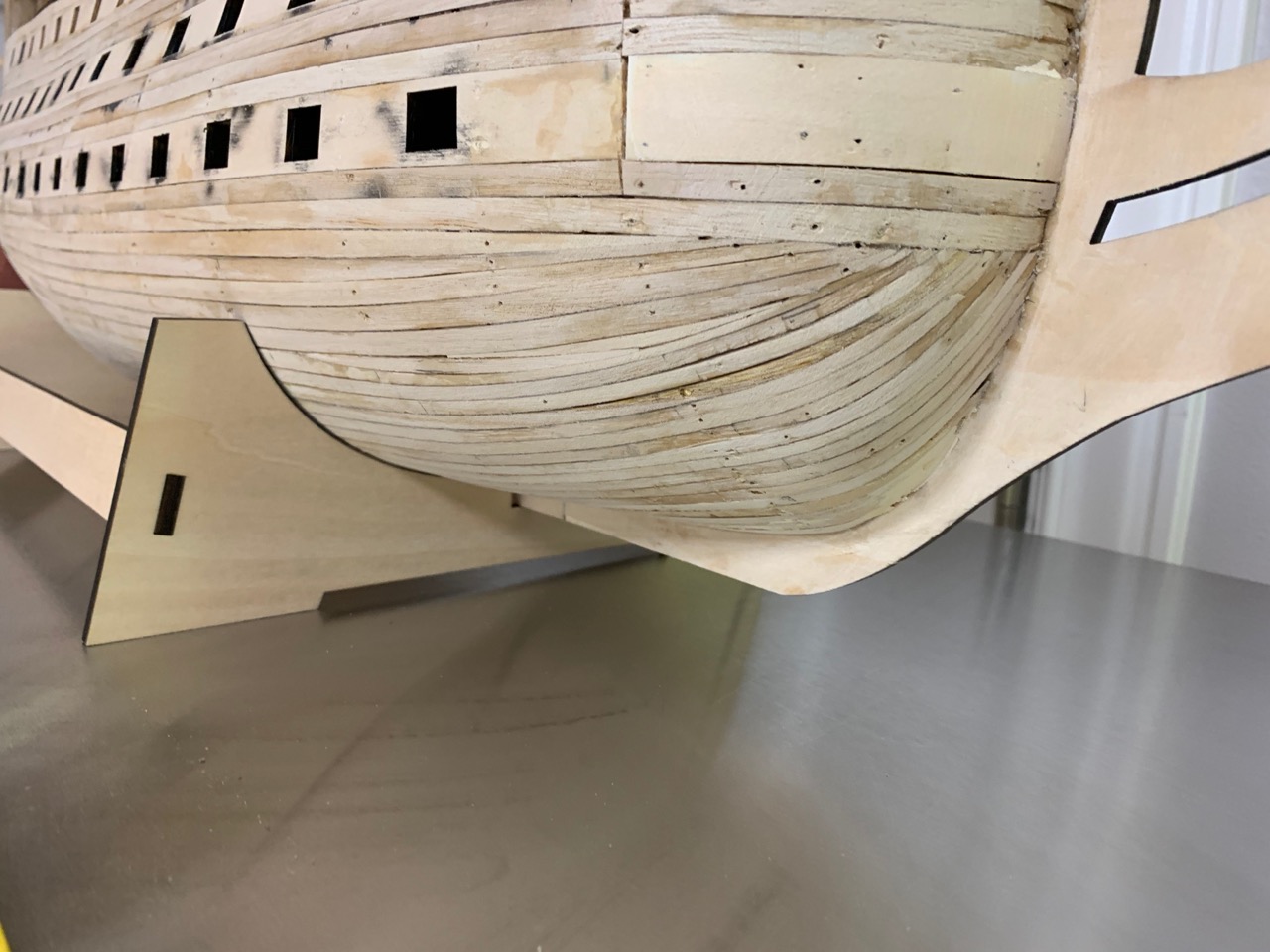

A few more pictures.  I have finished planking both sides, but I still have a few upper wales to add.  I've shortened the keel height by half and done some more work on the stern.  I have replicated bolts in the wales by using IC-2000 carbon and rubber toughened CA and Aleenes Original Tacky Glue.

7-19-2020. Here are pics to show my current status on the build.

Go to Page 2 – HERE.

1/70 Soleil Royal Pg 2

Posted by Paul On April - 1 - 2020

This is page 2 of the continuing build log of my 1/70 scale model of the French ship Soleil Royal dating to 1669.

If you want to go back to page 1 – go HERE.

If you want to go to page 3 – go HERE.

7/26/2020 Here are some pics to show the latest proogress.  A few days ago, in a moment of insanity, I decided to replicate the hull plank pegs.  Thus I had to drill about 2000 holes in the hull, glue in basswood toothpicks and trim and sand them.  This was followed by a coat of Minwax natural stain.

7/28/2020. Here are some more build photos. The light hull planking is finished with Minwax Natural then Minwax Cherry. I made a plastic pattern to allow me to accuratly drill 2 holes on each side of the gunports for the black nails.  There are about 1200 toothpicks on each side.  That's a lot of holes!!

8/14/2020 A few more photos.  The build has been a ton of fun – such a nice change from plastic models.

8/28/2020 Another update – cannons finished and one is installed and rigged.

9/4/2020 The waist cannons are now finished.

9/13/2020 The upper deck cannons are finished and the first one has been installed.  I'm still waiting for the 2mm single and double blocks I've odered from Syren.

9/18/2020 A few more pictures….
